Stick Pack

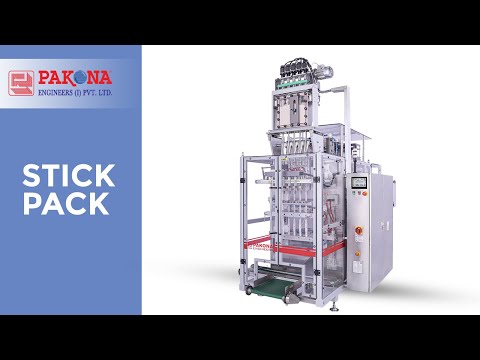

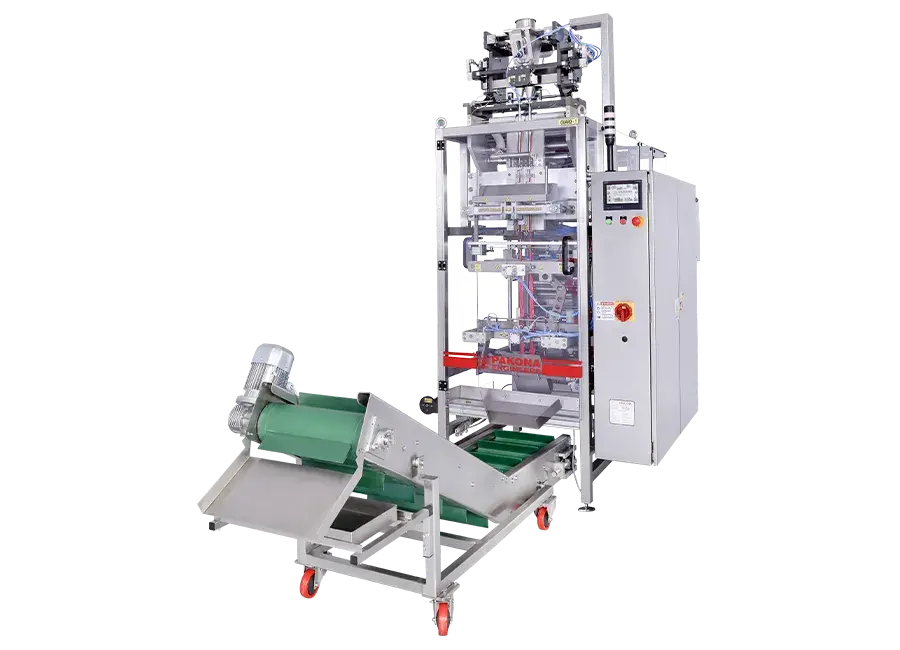

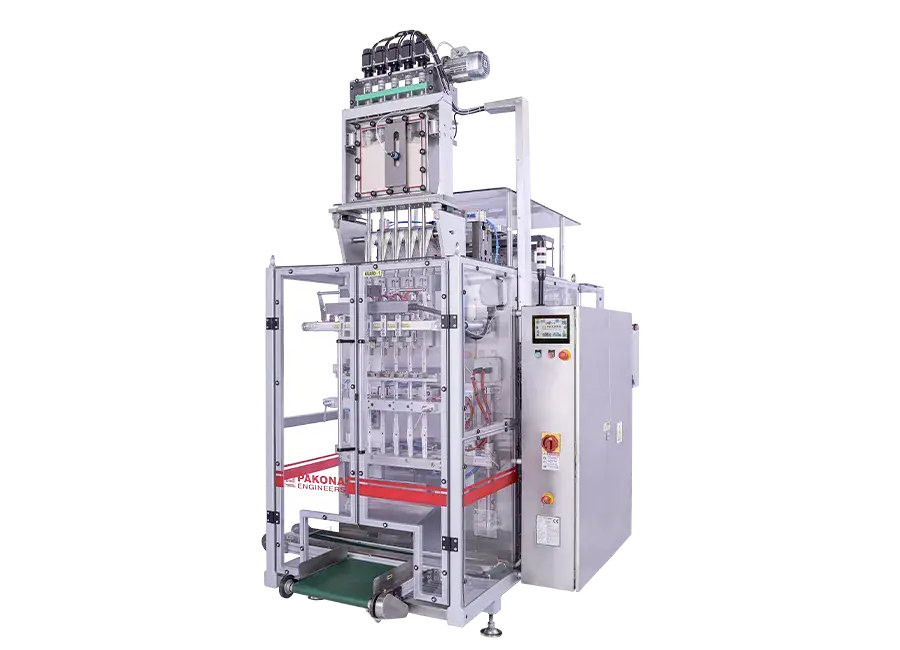

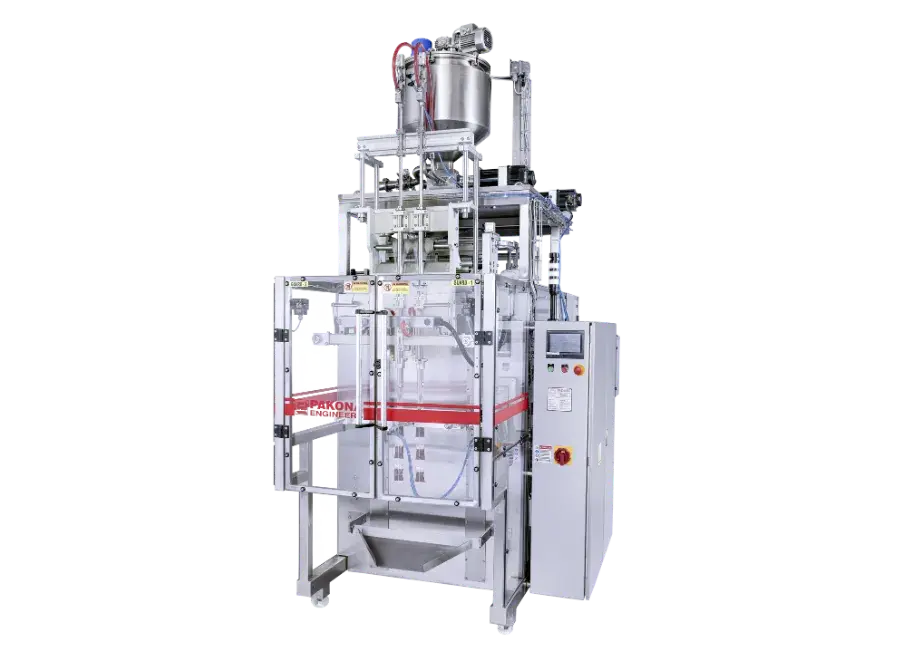

The Stick Pack Machine is a high-speed vertical system designed to produce slim, single-serve pouches for powders, liquids, and granules, such as instant coffee, sugar, and pharmaceuticals. Ideal for food, healthcare, and nutraceuticals, it offers multiple lanes for higher output and precise filling.



PK-ST-400

SpecificationPowderGranulesLiquids
No. of Tracks5 to 6 (depends on pouch width)5 to 9 (depends on pouch width)5 to 10 (depends on pouch width)
Connected Load415 V, 3Ø+N, 50 Hz
Compressed Air6 Bar Pressure
Machine Size (LxWxHt, mm)1670 x 2760 x 2010
Machine ConstructionMS Painted, Product Contact Parts in AISI-316
Stick Width (mm)25 - 3517 - 3515 - 35
Stick Length (mm)40 - 20040 - 20040 - 200
Filling Capacity1 cc to 30 cc1 cc to 15 cc1 ml to 10 ml
Max. Capacity (Per Track)25 to 40 pouches/min
Packaging MaterialAll Heat Sealable Laminates



PK-ST-800

SpecificationPowderGranulesLiquids
No. of Tracks10 to 13 (depends on pouch width)10 to 18 (depends on pouch width)10 to 20 (depends on pouch width)
Connected Load415 V, 3Ø+N, 50 Hz
Compressed Air6 Bar Pressure
Machine Size (LxWxHt, mm)1870 x 2650 x 2100
Machine ConstructionMS Painted, Product Contact Parts in AISI-316
Stick Width (mm)25 - 3517mm - 35mm15mm - 35mm
Stick Length (mm)40 - 20040 - 20040 - 200
Filling Capacity1 cc to 30 cc1 cc to 15 cc1 ml to 10 ml
Max. Capacity (Per Track)25 to 40 pouches/min
Packaging MaterialAll Heat Sealable Laminates
