Multitrack 4 Side Seal MachineMultitrack 4 Side Seal VFFS MachineMulti-Track / Pillow Pouch 4 Side Seal VFFS Machine Paper Pouch

Multitrack 4 Side Seal

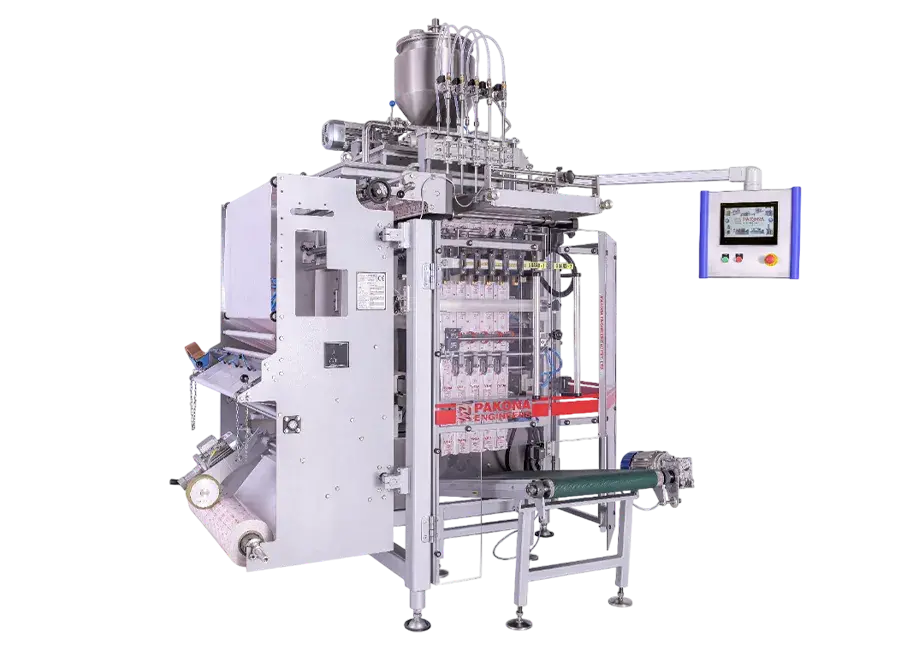

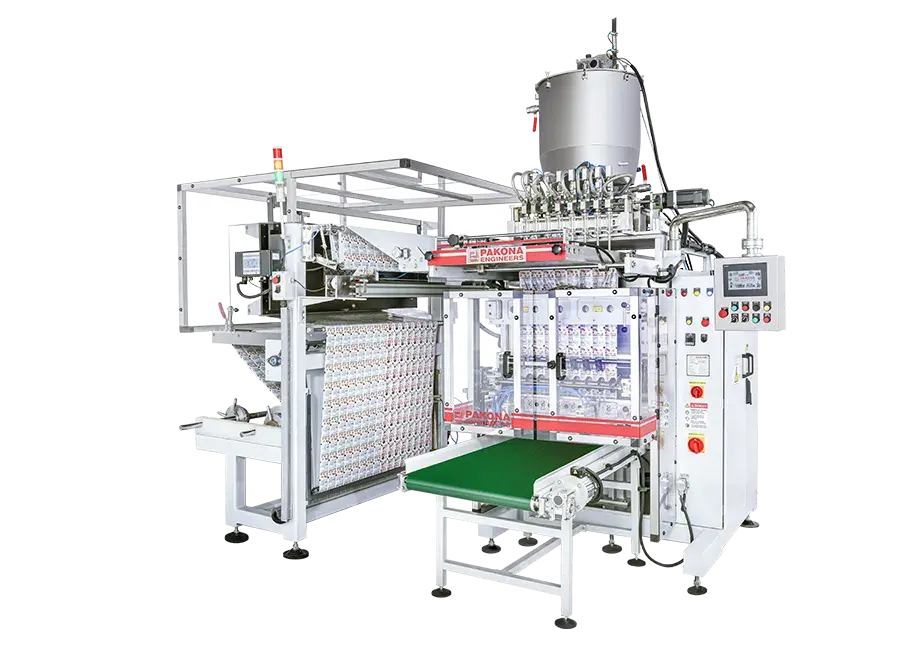

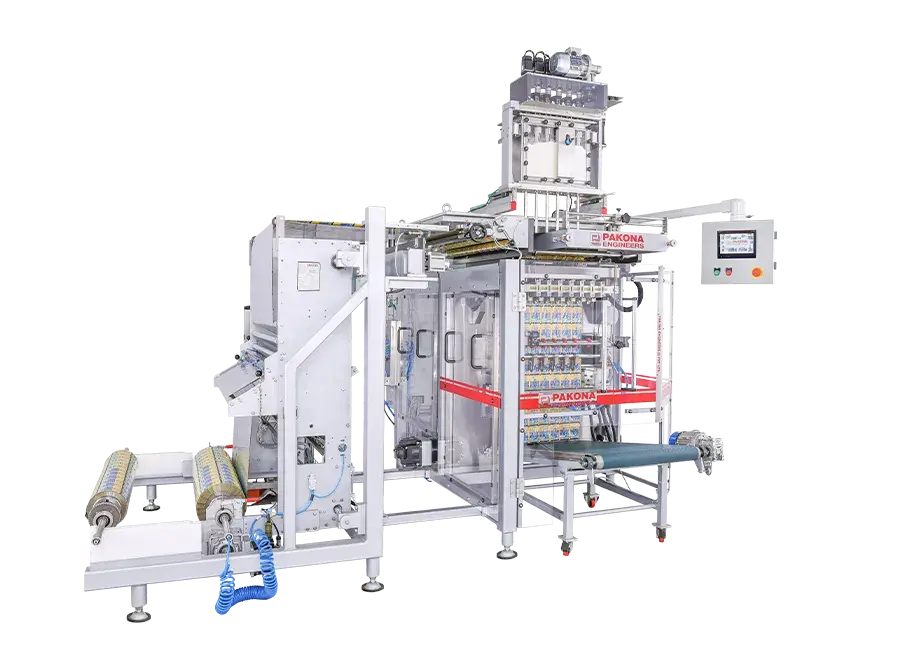

High-speed Vertical form fill seal machine Multitrack 4 Side Seal for efficient packaging in India. The Multitrack 4 Side Seal Machine by Pakona Engineers is a fast and reliable packaging machine. This machine ensures high-speed output, consistent sealing, and accurate filling for many industries, including FMCG, food, pharmaceutical and cosmetics.
SpecificationPK-800 (LIQUID)PK-800 (DRY)PK-1000 (LIQUID)PK-1000 (DRY)PK-1200 (LIQUID)PK-1200 (DRY)
Nominal Speed (Dry Run)Up to 80 pouches/minUp to 80 pouches/minUp to 80 pouches/minUp to 80 pouches/minUp to 120 pouches/minUp to 120 pouches/min
No. of TracksMax 10 Lanes
(Depends upon pouch width)		Max 5 Lanes
(Depends upon pouch width)		Max 12 Lanes
(Depends upon pouch width)		Max 7 Lanes
(Depends upon pouch width)		Max 16 Lanes
(Depends upon pouch width)		Max 10 Lanes
(Depends upon pouch width)
Connected Load12.6 kW, 415 V, 3 Ø+N, 50 Hz14.1 kW, 415 V, 3 Ø+N, 50 Hz17 kW, 415 V, 3 Ø+N, 50 Hz19.5 kW, 415 V, 3 Ø+N, 50 Hz28 kW, 415 V, 3 Ø+N, 50 Hz31 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption500 litres/min at 6 bar500 litres/min at 6 bar500 litres/min at 6 bar500 litres/min at 6 bar80 litres/min at 6 bar80 litres/min at 6 bar
Machine Size (L × W × H in mm)2530 × 2310 × 27802530 × 2310 × 27103500 × 2730 × 29503500 × 2730 × 28803800 × 3000 × 31003800 × 3000 × 3300
Machine ConstructionM.S. Painted, Product Contact Parts are in AISI-316M.S. Painted, Product Contact Parts are in AISI-316M.S. Painted, Product Contact Parts are in AISI-316M.S. Painted, Product Contact Parts are in AISI-316M.S. Painted, Product Contact Parts are in AISI-316M.S. Painted, Product Contact Parts are in AISI-316
Film PullingServoServoServoServoServoServo
Film SealingServoServoServoServoServoServo
Pouch Width (mm)38 - 12570 - 12538 - 12570 - 12538 - 12570 - 125
Pouch Length (mm)50 - 16550 - 16550 - 16550 - 16550 - 19050 - 190
Filling Volume2 ml to 150 ml15 cc to 500 cc2 ml to 150 ml15 cc to 500 cc2 ml to 150 ml15 cc to 500 cc
Packaging MaterialAll Heat Sealable LaminatesAll Heat Sealable LaminatesAll Heat Sealable LaminatesAll Heat Sealable LaminatesAll Heat Sealable LaminatesAll Heat Sealable Laminates
