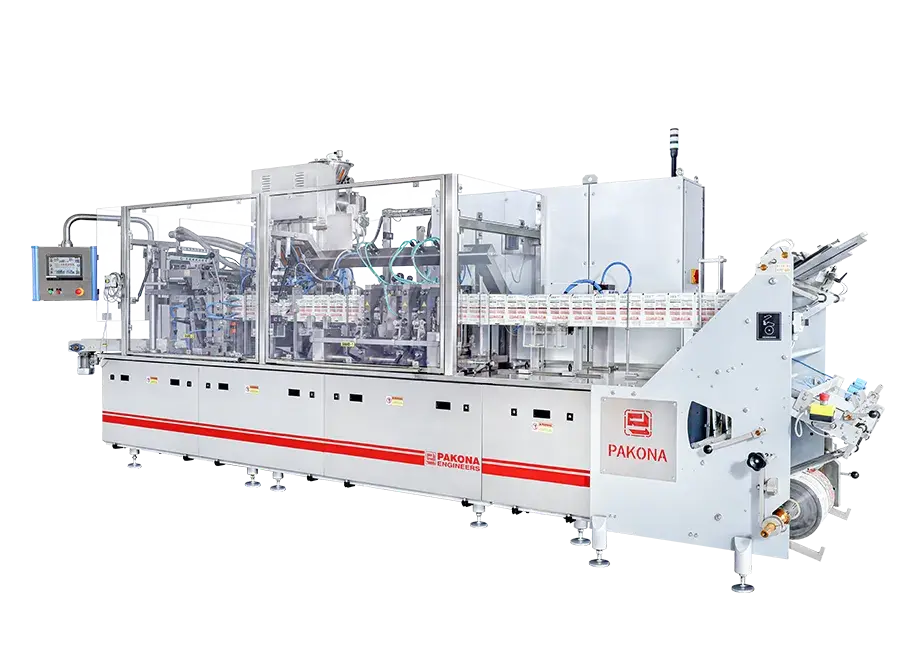

PK-100
The new generation of machines are of Rugged construction and User friendly. These machines are easy to operate and versatile.
The HFFS solutions are able to produce different shapes and pack styles, flat or Standups, Spout for fitments for easy pouring, Re closable Zipper Systems, etc. as various market demands.
| Machine | PK-100 Simplex | PK-30 Duplex |
|---|---|---|
| Nominal Speed (Dry Run) | Up to 100 pouches/min | Up to 160 pouches/min |
| Connected Load | 12 kW, 415 V, 3 Ø+N, 50 Hz | 14 kW, 415 V, 3 Ø+N, 50 Hz |
| Air Consumption at 6 Bar | 15 NL/Cycle | 17 NL/Cycle |
| Machine Size (L x W x H in mm) | 5050 x 1775 x 2000 | 5050 x 1775 x 2000 |
| Machine Construction | MS Painted, Product Contact Parts are in AISI-316 | MS Painted, Product Contact Parts are in AISI-316 |
| Film Pulling | Servo | Servo |
| Pillow Bag Width Size (mm) | 50 - 240 | 50 - 110 |
| Pillow Bag Height Size (mm) | 80 - 350 | 80 - 350 |
| Filling Volume | 1 cc To 2000 cc | 1 cc To 500 cc |
| Packaging Material | Co-Extruded LDPE or All Heat Sealable Laminates | Co-Extruded LDPE or All Heat Sealable Laminates |
