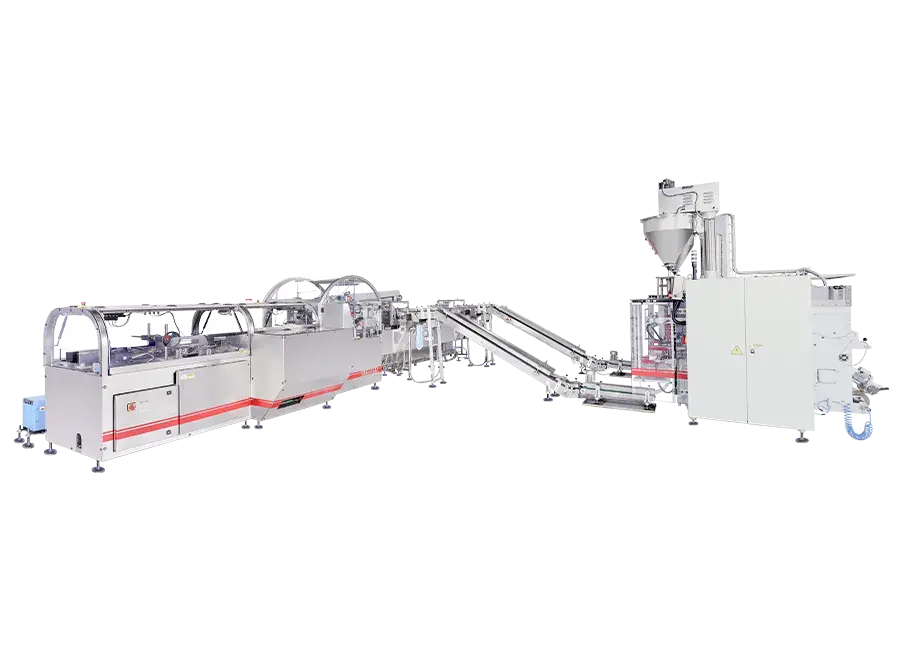

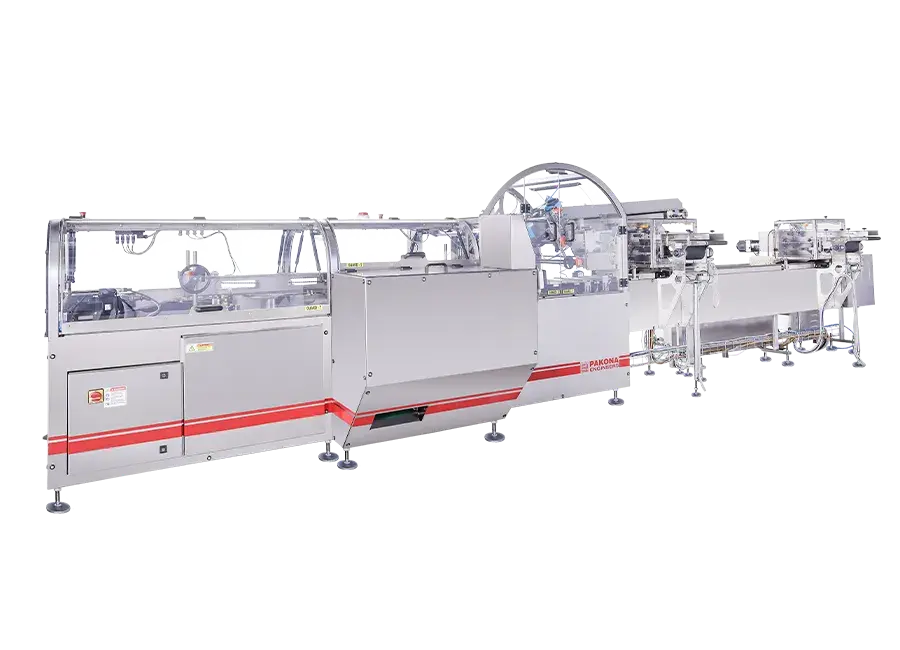

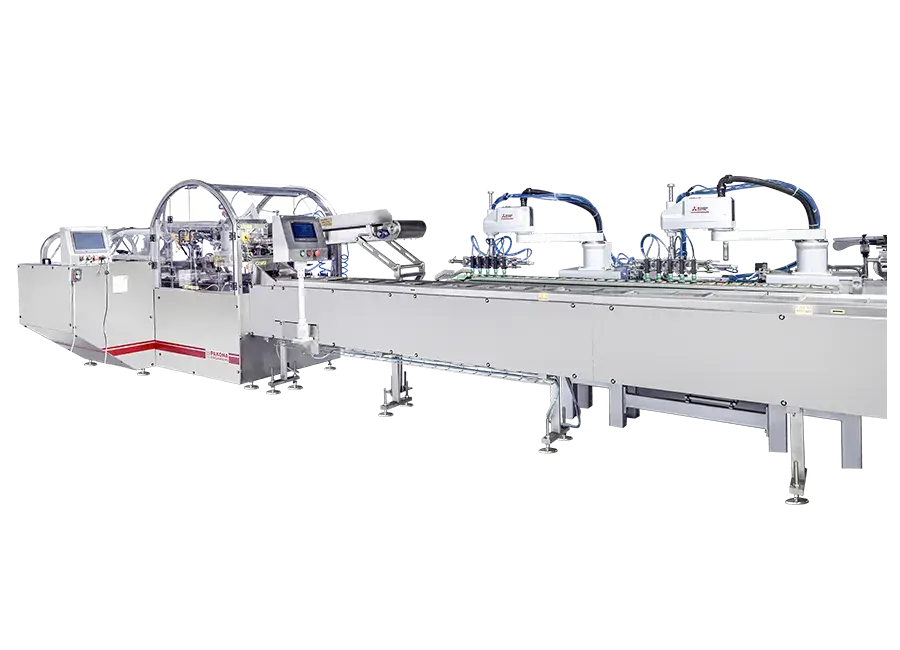

Cartoner Packaging MachineHorizontal Cartoner MachineCartoner Packaging Machine by Pakona Engineers Paper Pouch

Cartoner

Built under the technical know-how of Jacob White Packaging, UK, these cartoners are suited for secondary packing of Flexible pouches, Trays, Solid bars, etc.

The cartoners can be provided with

  • Ink Jet Printers, Laser Thermal Transfer And Deboss Coding

  • Open Flap Detection

  • Bar Code Verification & Data Collection

  • Automatic Carton Feeder

  • Product Transfer & Collection

  • Tuck Closure

  • Glue Tuck Closure

SpecificationNSX 3.1NSX 5.1NSX 5.1 L
Nominal Speed Dry RunUpto 130 cartons/minUpto 130 cartons/minUpto 200 cartons/min
Connected Load3.5 kW, 415 V, 3 Ø+N, 50 Hz3.5 kW, 415 V, 3 Ø+N, 50 Hz6 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar8.3 NL/Cycle8.3 NL/Cycle8.3 NL/Cycle
Machine Size LxWxHt (mm)4600 × 1180 × 17507390 × 1600 × 17508150 × 1890 × 1750
Machine ConstructionMS Painted or SS 304MS Painted or SS 304MS Painted or SS 304
Synchronization with VFFS machineNot PossiblePossiblePossible
Carton Length Size (A) (mm)108 - 290108 - 250108 - 250
Carton Width Size (B) (mm)44 - 25044 - 25044 - 250
Carton Height (C) (mm)20 - 9020 - 8020 - 80
