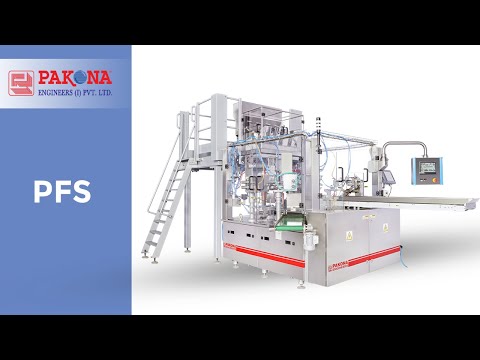

Pick Fill Seal Machine PFS Paper Pouch

PFS

The PFS machines consists of a pouch feeding conveyor upto two lanes or a magazine loader, a pick and place systems to transfer the preformed pouches to a Rotary Turret. The pouches are opened, filled and Top sealed. The Pick Fill Seal (PFS) Machines from Pakona Engineers (I) Pvt Ltd are designed for efficient horizontal pouch packaging.
MachinePFS SimplexPFS Duplex
Nominal Speed (Dry Run)Up to 40 pouches/minUp to 70 pouches/min
Connected Load3 kW, 415 V, 3 Ø+N, 50 Hz8 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar28.5 NL/Cycle37.1 NL/Cycle
Machine Size (L x W x H in mm)2110 x 3470 x 20003200 x 3750 x 2015
Machine ConstructionMS Painted, Product Contact Parts are in AISI-316MS Painted, Product Contact Parts are in AISI-316
Bag Width Size (mm)100 - 24080 - 150
Bag Length Size (mm)150 - 300115 - 260
Filling Volume50 cc To 1500 cc1 cc To 350 cc
Packaging MaterialAll Heat Sealable Laminates
