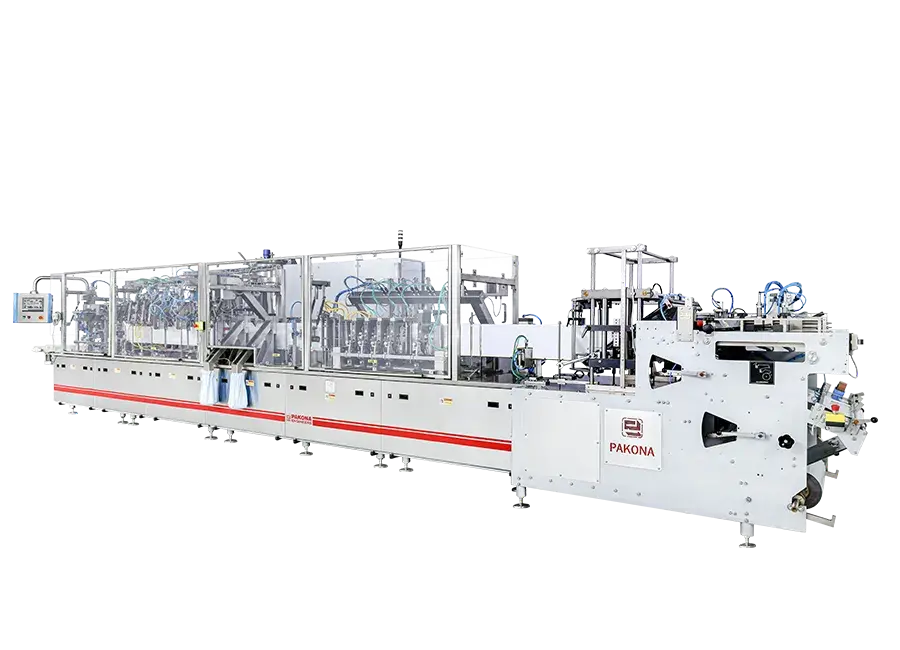

PK-101

This advanced machine is designed with a state-of-the-art mechanism for optimal performance. It features a pre-unwind system that ensures continuous motion before roll unwinding. The quick changeover cassette option allows for seamless size adjustments, while the vertical and bottom sealing jaws can be fine-tuned during operation for greater flexibility. Additionally, the rotary turret is driven by a Globodial Cam indexer, providing smoother acceleration and deceleration for more precise control.
MachinePK-101 SimplexPK-101 DuplexPK-101 Triplex
Nominal Speed Dry RunUpto 100 pouches/minUpto 200 pouches/minUpto 300 pouches/min
Connected Load14 kW, 415 V, 3 Ø+N, 50 Hz14 kW, 415 V, 3 Ø+N, 50 Hz16 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar15 NL/Cycle17 NL/Cycle20 NL/Cycle
Machine Size LxWxHt (mm)5310 x 1735 x 20005310 x 1735 x 20005310 x 1735 x 2000
Machine ConstructionMS Painted, Product Contact Parts are in AISI-316
Bag Width Size (mm)80 - 33580 - 15050 - 90
Bag Length Size (mm)100 - 350100 - 35070 - 210
Filling Volume50 cc To 2000 cc50 cc To 750 cc1 cc To 200 cc
Packaging MaterialAll Heat Sealable LaminatesAll Heat Sealable LaminatesAll Heat Sealable Laminates
