VFFS PK-70 MachineVertical Form Fill Seal PK-70 Machine Paper Pouch

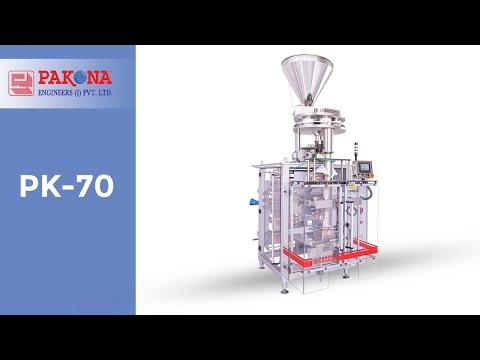

PK-70

The PK-70 features a 5.7” color touch screen, servo-driven film pulling system, and an independent electrical panel. It offers an optional servo-driven cross seal, M.A.P. support, and a lubrication-free design. Safety interlocked guards and easy access for maintenance are included, along with optional pneumatically expandable reel shafts, a pre-unwind system with manual splice table, and vacuum film advance.
SpecificationPK-70 PK-70 Twin
Nominal Speed (Dry Run)Up to 120 pouches/minUp to 180 pouches/min
Connected Load6.5 kW, 415 V, 3 Ø+N, 50 Hz13.5 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar1.2  NL/Cycle1.3 NL/Cycle
Machine Size (L × W × H in mm)1200 × 2000 × 16002200 × 2000 × 2100
Machine ConstructionMS Painted, Product Contact Parts are in AISI-316MS Painted, Product Contact Parts are in AISI-316
Film PullingServoServo
Cross SealServoServo
Pillow Bag Width Size (mm)70 - 23070 - 230
Pillow Bag Width Size (mm)75 - 32575 - 325
Pouch Height (mm)100 - 390100 - 390
Filling Capcity50 cc to 1000 cc50 cc to 5000 cc
Packaging MaterialCo-Extruded LDPE or all Heat SealableLaminatesCo-Extruded LDPE or all Heat SealableLaminates
