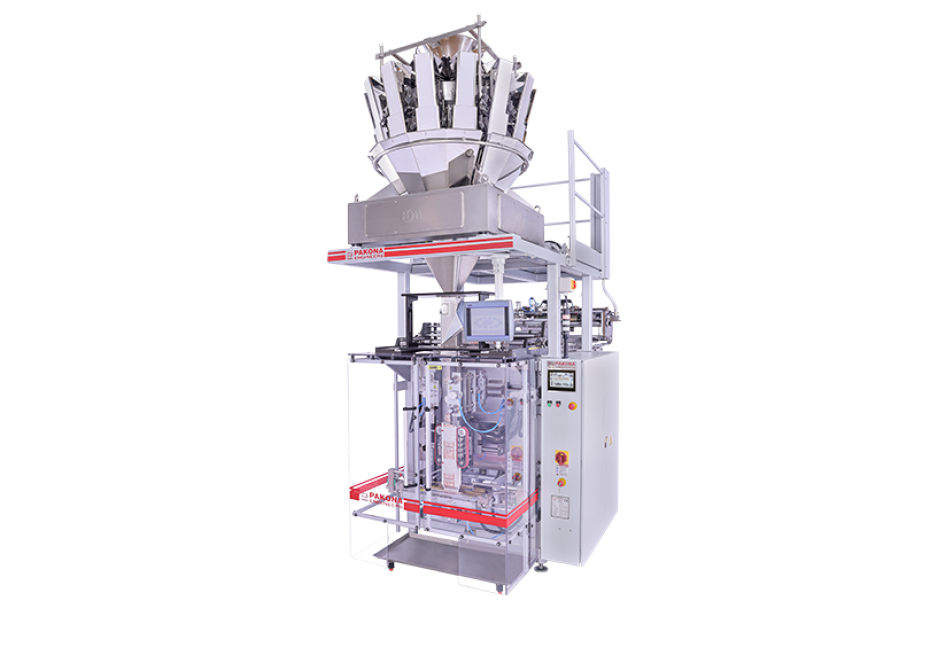

PK-70 Quadro / Penta
The PK-70 Quadro and PK-70 Penta are both designed for efficient pouch packaging with similar construction and features. They are made with MS-painted bodies and AISI-316 for product-contact parts. The machines are suitable for bags with various widths and gusset sizes and can handle a wide range of pouch heights.
| Specification | PK-70 Quadro | PK-70 Penta |
|---|---|---|
| Nominal Speed (Dry Run) | Up to 60 pouches/min | Up to 50 pouches/min |
| Connected Load | 7 kW, 415 V, 3 Ø+N, 50 Hz | 7 kW, 415 V, 3 Ø+N, 50 Hz |
| Air Consumption at 6 Bar | 6.1 NL/Cycle | 6.1 NL/Cycle |
| Machine Size (L × W × H in mm) | 1200 × 2000 × 2600 | 1200 × 2000 × 2400 |
| Machine Construction | MS Painted, Product Contact Parts are in AISI-316 | MS Painted, Product Contact Parts are in AISI-316 |
| Film Pulling | Servo | Servo |
| Cross Seal | Pneumatic | Pneumatic |
| Bag Width Size (mm) (Front Panel + Gusset) | (W+G) ≤ 250 | (W+G) ≤ 250 |
| Bag Gusset Size (mm) | 60 G - 90 G | 60 G - 100 G |
| Pouch Height (mm) | 100 - 390 | 100 - 390 |
| Filling Volume | 100 cc to 1000 cc | 100 cc to 5000 cc |
| Packaging Material | All Heat Sealable Laminates | All Heat Sealable Laminates |
