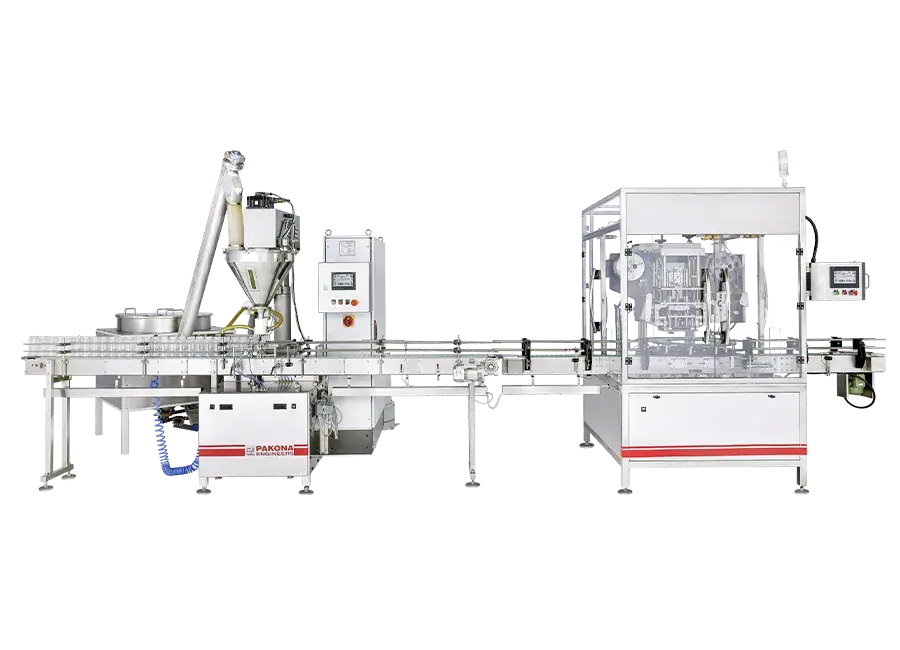

Container Filling Lines

Pakona’s Container Filling Line includes all the machines needed for smooth and hygienic packaging. It starts with an Unscrambler / Turn Table that arranges the empty containers. Then, Air Jet Cleaning removes dust, followed by UV Light Tunnel for sterilizing. An Induction Sealer seals the containers tightly. After that, a Labelling Machine adds labels, and finally, a Sleeving Machine gives a neat, tamper-proof finish. This complete system makes the packaging fast, clean, and efficient.
SpecificationBottle Filling Line
Nominal Speed Dry RunBetween 40-100 bottles/min
Connected Load10 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar10 NL/Cycle
Machine SizeAs Per Configuration
Machine ConstructionMS Painted, Product Contact Parts are in AISI-316
Bottle Size (Square or Rectangular)Up to 150 mm
Bottle HeightUp to 210 mm
Filling Volume50 cc To 1000 cc
Type of BottlePET, HDPE, LDPE, GLASS
