Baler Machine by Pakona EngineersVertical Baling Machine Paper Pouch

Baler

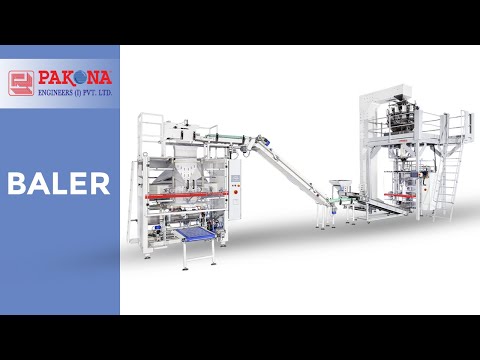

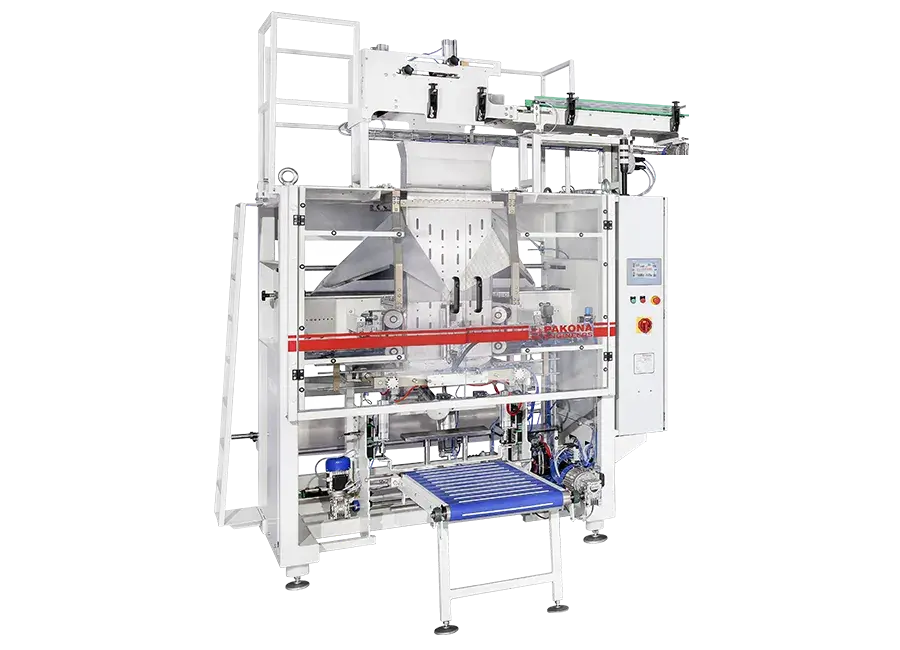

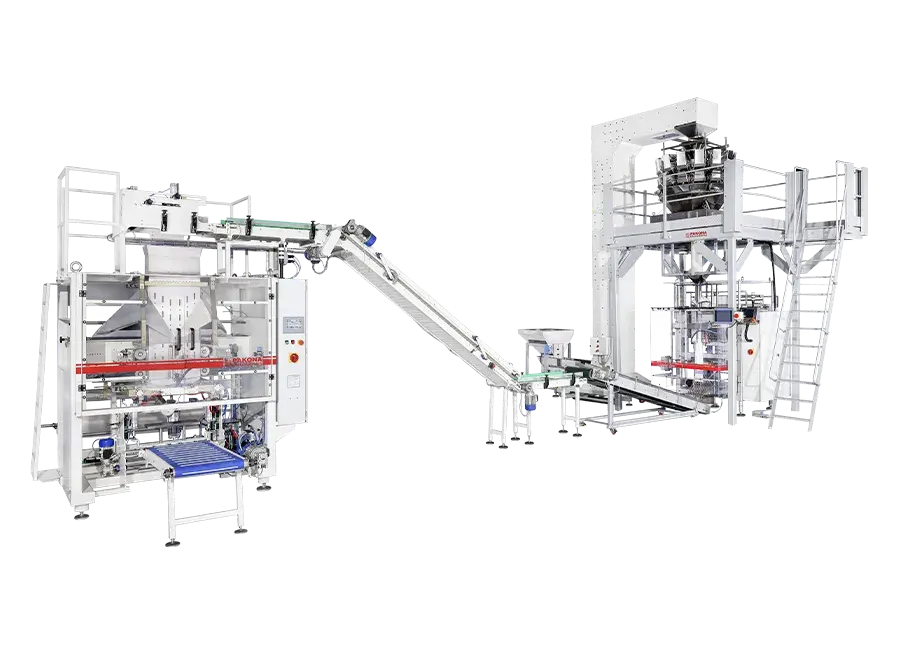

Built under technical know how of PMD Packaging Systems, South Africa, the Baler machine is designed to be directly coupled to a primary Vertical Form Fill Seal machine thus enabling one operator to manage a complete packaging station. Baler can produce single row stack / double row stack or three row stack of pouches.
SpecificationPK-79PK-79L
Nominal Speed Dry RunMax. 6 balesMax. 6 bales
Connected Load8 kW, 415 V, 3 Ø+N, 50 Hz8 kW, 415 V, 3 Ø+N, 50 Hz
Air Consumption at 6 Bar17.6 CFM17.6 CFM
Machine Size LxWxHt (mm)5200 × 2500 × 22006200 × 2500 × 2200
Machine ConstructionMS Painted, Product Contact Parts are in AISI-316MS Painted, Product Contact Parts are in AISI-316
Product FeedingManual / AutomaticManual / Automatic
Synchronization with VFFS machinePossiblePossible
Bale Width Size (mm)100 - 380100 - 500
Bale Gusset Size (mm)100 - 250100 - 300
